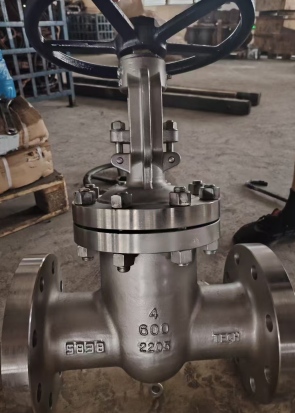

API ANSI Gate Valve Iron / WCB / Stainless Steel Material For Water And Chemical

Name: API ANSI Gate Valve Iron WCB Stainless Steel Material For Water And Chemical
Brand: SND FOUNDRY
Price: 1 USD

China API ANSI Gate Valve Iron / WCB / Stainless Steel Material For Water And Chemical wholesale

Brand Name : SND FOUNDRY

Model Number : Gate valve

Certification : ISO / CE

Place of Origin : Zhejiang, China

MOQ : 1 pcs

Payment Terms : L/C, T/T

Supply Ability : 100,000 pcs.

Delivery Time : 20 days

Packaging Details : Wood Box

Power : Hydraulic, Solenoid, Pneumatic, Manual, Electric power+manual

Media : Oil, Water, Gas, Air, Liquid

Temperature of media : Medium Temperature, Normal Temperature, High Temperature, Low Temperature, -10-200℃

Type : Casting, Welding, Forging

Body Material : Casting Iron, Carbon Steel, Stainless Steel, Brass, Steel

Standard : API/DIN/JIS OR nonstandard

Pressure : High Pressure, Medium Pressure, Low Pressure

Connection : Flanged, BSP&NPT,Flanges Universal Standard , Double Ferrules, Female BSP/NPT Connection

Warranty : 18 months

Contact Now

API ANSI Gate valve Iron/ WCB/ Stainless Steel Material for Water and Chemical Industry

1. Overview
The API (American standard) gate valves produced by our company are designed and manufactured in full accordance with American standards. They have beautiful and advanced structures. The opening and closing parts of the valve are gate plates. The movement direction of the gate plates is perpendicular to the direction of the fluid. The gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled. The gate plates have two sealing surfaces, and the wedge angle is 2°52'. The gate plates between the wedge gates can be made into a whole, which is called a rigid gate plate; they can also be made into gate plates that can produce slight deformations to improve their processability and compensate for the deviation of the sealing surface angle during the processing process. This type of gate plate is called an elastic gate plate.

API ANSI Gate Valve Iron / WCB / Stainless Steel Material For Water And Chemical

2. Performance parameter

No.	Items	Project Name
No.	Items	150(Lb)	300(Lb)	600(Lb)	900(Lb)	1500(Lb)	2500(Lb)
1	PN (MPa)	2.0	5.0	10.0	15.0	25.0	45.0
2	Case Test Pressure (MPa)	3.0	7.5	15.0	22.5	37.5	67.5
3	High Pressure Sealing Test Pressure (MPa)	2.2	5.5	11.0	16.5	27.5	49.5
4	Max. Temperature Working Pressure (MPa)	≤2.0	≤5.2	≤10.4	≤15.6	≤25.8	≤45.8

3. Production Specification

Design Standard	Structrue Length	Connection Flange	Test and Inspection	Pressure and temperature reference
API 600	ASME B16.10	ASME B16.5	API 598	ASME B 16.34

4. Main Components Material

API ANSI Gate Valve Iron / WCB / Stainless Steel Material For Water And Chemical

5. American standard 300LB open rod/ dark rod gate valve

API ANSI Gate Valve Iron / WCB / Stainless Steel Material For Water And Chemical

6. American standard 600-2500LB open rod/ dark rod gate valve

API ANSI Gate Valve Iron / WCB / Stainless Steel Material For Water And Chemical
